Available Models
Specifications

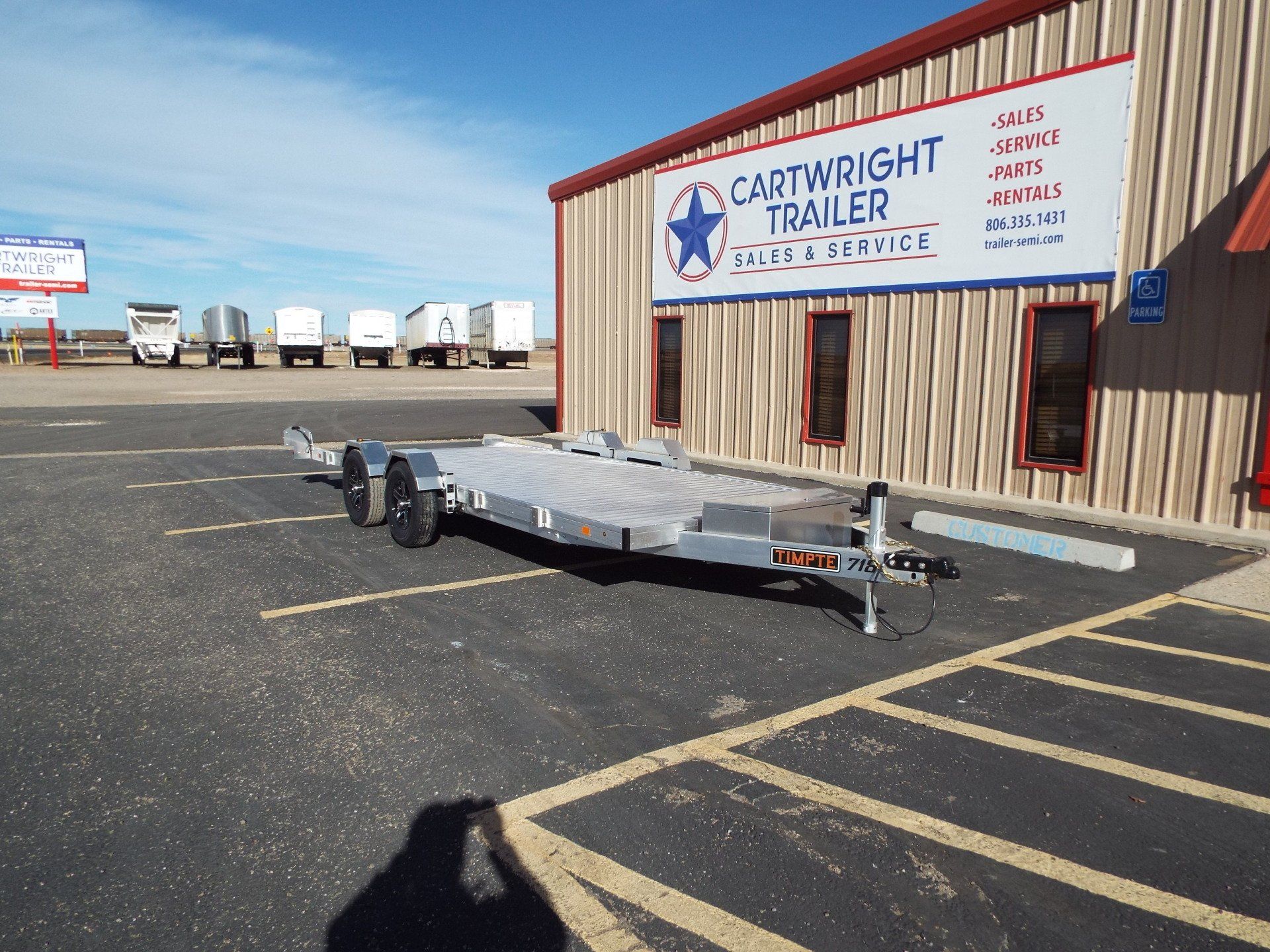

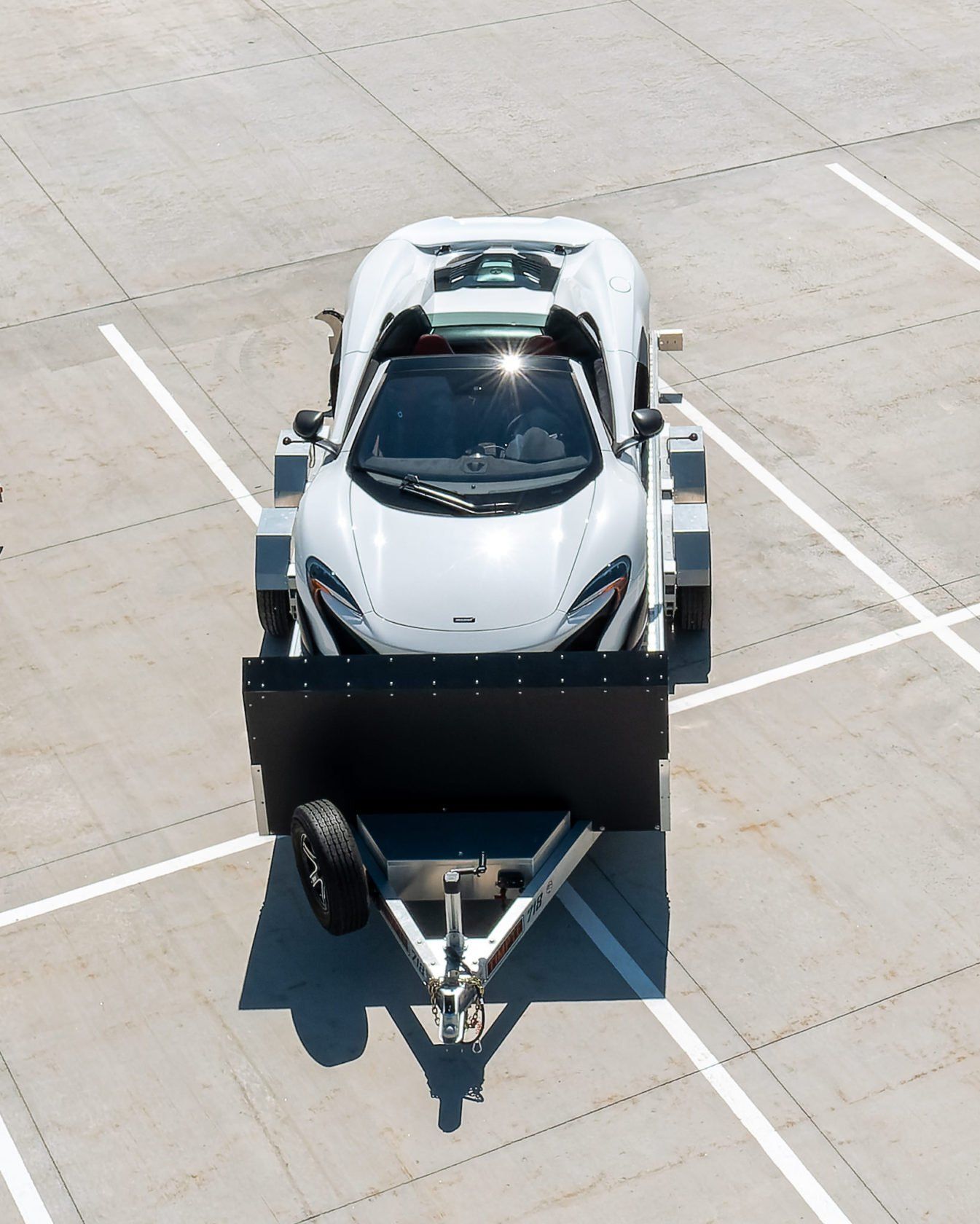

MODEL TYPE: 718
GVW: 7000 lbs
EMPTY WEIGHT: 1640 lbs
OVERALL WIDTH: 102 IN.
OVERALL LENGTH: 23 FT. 1 IN.
BED SIZE: 18 FT x 81IN
TONGUE LENGTH: 61 IN.
DECK HEIGHT: 18 IN.
GROUND CLEARANCE: 11 IN.
LOADING ANGLE: 4°
DECK/FRAME MATERIAL: ALUMINUM
FRAME CONSTRUCTION: A-FRAME
C-CHANNEL SIZE: 6 IN.
WHEEL SIZE: 14 IN.
WHEEL BOLT PATTERN: 5 – 4.5
TIRE SIZE: ST205/75R14
TIRE LOAD RANGE: D
TIRE LOAD RATING: 2,040 LBS
FENDER: FIXED
AXLE: ROTATING
SUSPENSION: LEAF SPRING
BRAKES: ELECTRIC
COUPLER: 2 5/16 IN.
COUPLER POSITION: FIXED
JACK STYLE: SIDE CRANK
JACK RATING: 2,000 LBS
LIGHTING: LED
STAKE POCKET: EIGHT
D-RING TIE-DOWNS: FOUR
Specifications
MODEL TYPE: 720
GVW: 7000 lbs
EMPTY WEIGHT: 1780 lbs
OVERALL WIDTH: 102 IN.
OVERALL LENGTH: 25 FT. 1 IN.
BED SIZE: 20 FT x 81 IN
TONGUE LENGTH: 61 IN.
DECK HEIGHT: 18 IN.
GROUND CLEARANCE: 11 IN.
LOADING ANGLE: 4°
DECK/FRAME MATERIAL: ALUMINUM
FRAME CONSTRUCTION: A-FRAME
C-CHANNEL SIZE: 6 IN.
WHEEL SIZE: 14 IN.
WHEEL BOLT PATTERN: 5 – 4.5
TIRE SIZE: ST205/75R14
TIRE LOAD RANGE: D
TIRE LOAD RATING: 2,040 LBS
FENDER: FIXED
AXLE: ROTATING
SUSPENSION: LEAF SPRING
BRAKES: ELECTRIC
COUPLER: 2 5/16 IN.
COUPLER POSITION: FIXED
JACK STYLE: SIDE CRANK
JACK RATING: 2,000 LBS
LIGHTING: LED
STAKE POCKET: EIGHT
D-RING TIE-DOWNS: FOUR
Specifications

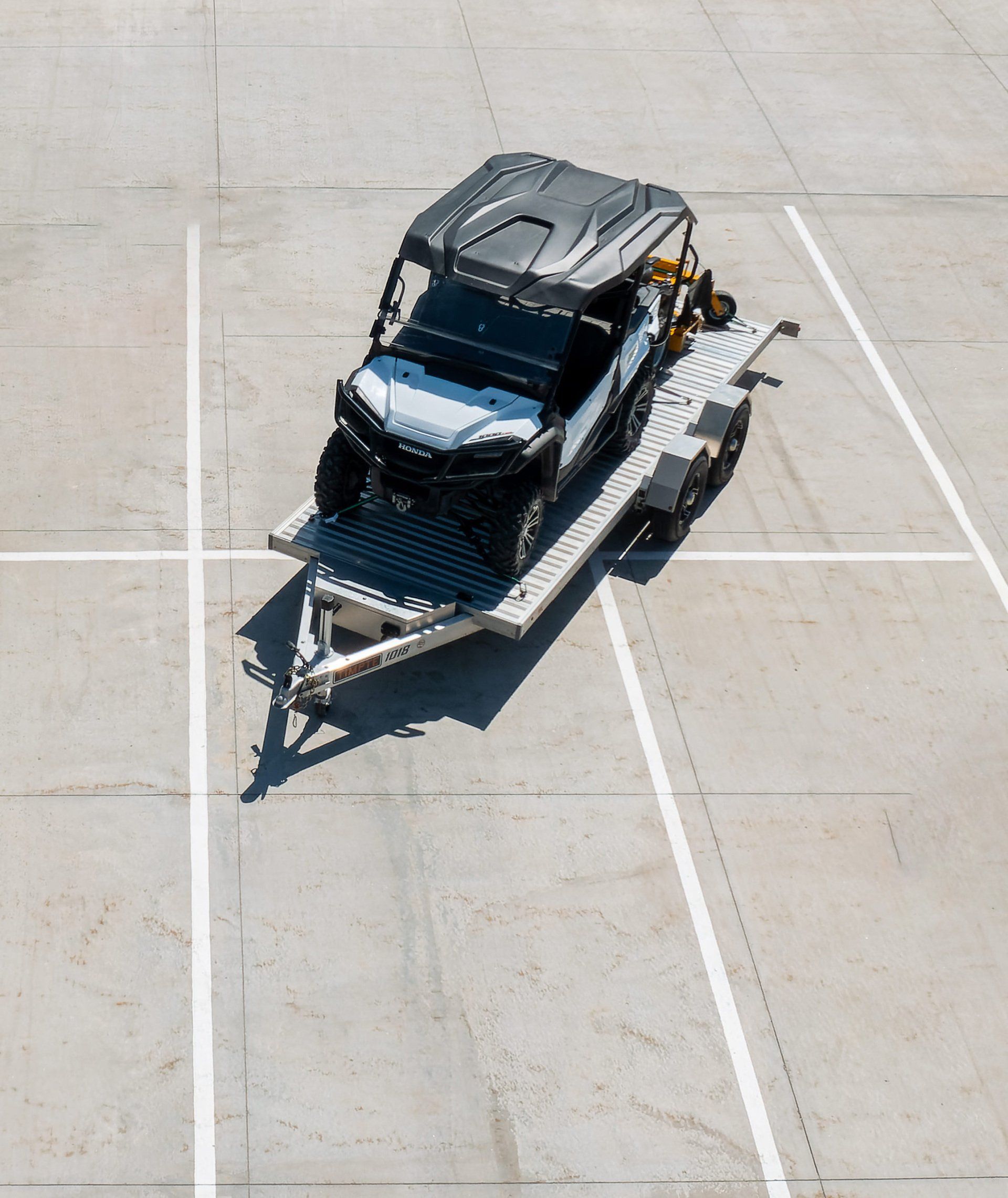

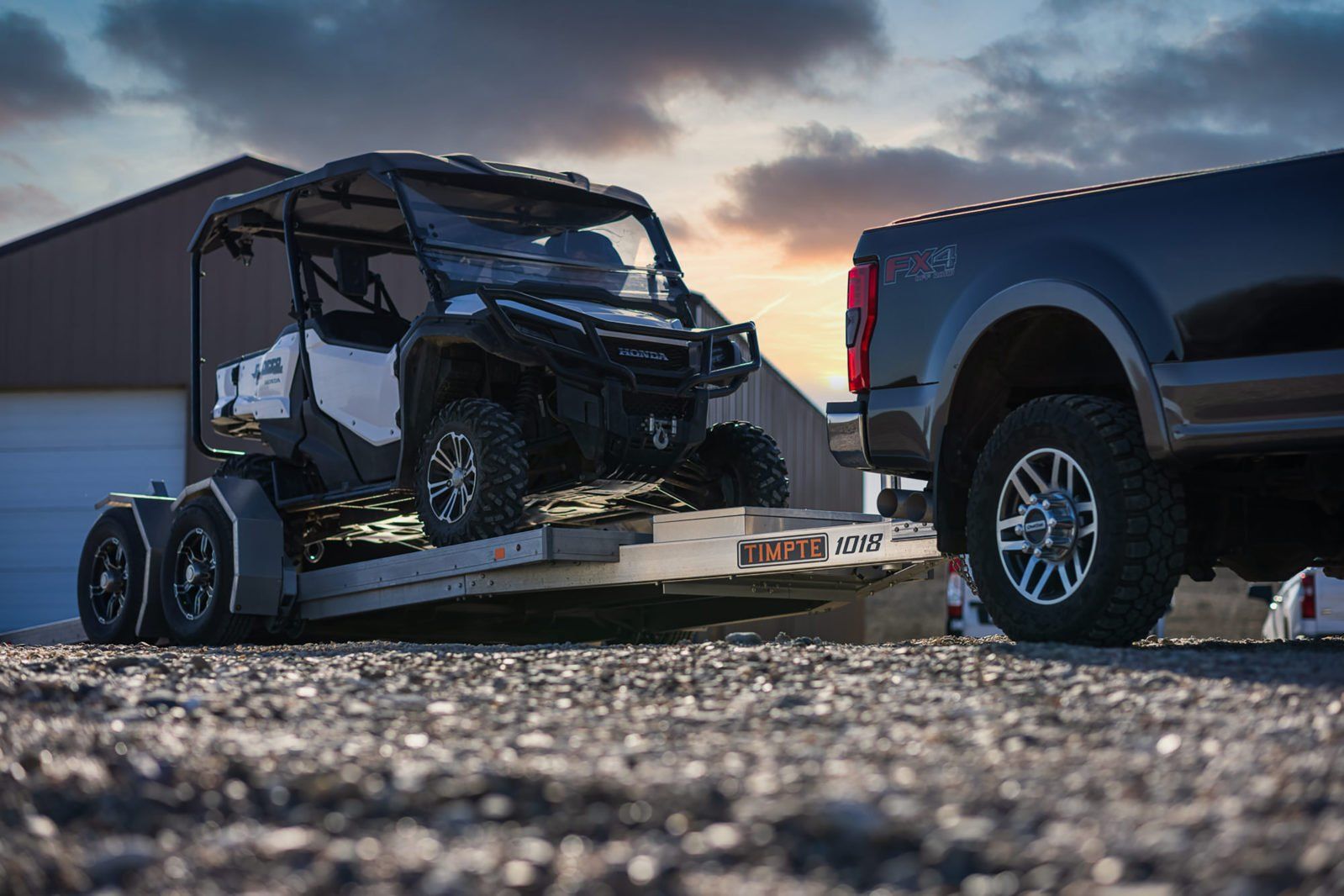

MODEL TYPE: 1018
GVW: 10000 lbs
EMPTY WEIGHT: 2120 lbs
OVERALL WIDTH: 102 IN.
OVERALL LENGTH: 23 FT. 1 IN.
BED SIZE: 18 FT x 78 IN
TONGUE LENGTH: 61 IN.
DECK HEIGHT: 21 IN.
GROUND CLEARANCE: 11 IN.
LOADING ANGLE: 4°
DECK/FRAME MATERIAL: ALUMINUM
FRAME CONSTRUCTION: A-FRAME
C-CHANNEL SIZE: 6 IN.
WHEEL SIZE: 16 IN.
WHEEL BOLT PATTERN: 5 – 4.5
TIRE SIZE: ST235/80R16
TIRE LOAD RANGE: 10 P.R.
TIRE LOAD RATING: 3520 LBS
FENDER: FIXED
AXLE: ROTATING
SUSPENSION: LEAF SPRING
BRAKES: ELECTRIC
COUPLER: 2 5/16 IN.
COUPLER POSITION: FIXED
JACK STYLE: SIDE CRANK
JACK RATING: 2,000 LBS
LIGHTING: LED
STAKE POCKET: EIGHT
D-RING TIE-DOWNS: FOUR
Specifications
MODEL TYPE: 1020
GVW: 10000 lbs
EMPTY WEIGHT: 2240 lbs
OVERALL WIDTH: 102 IN.
OVERALL LENGTH: 25 FT. 1 IN.
BED SIZE: 20 FT x 78 IN
TONGUE LENGTH: 61 IN.
DECK HEIGHT: 21 IN.
GROUND CLEARANCE: 11 IN.
LOADING ANGLE: 4°
DECK/FRAME MATERIAL: ALUMINUM
FRAME CONSTRUCTION: A-FRAME
C-CHANNEL SIZE: 6 IN.
WHEEL SIZE: 16 IN.
WHEEL BOLT PATTERN: 5 – 4.5
TIRE SIZE: ST235/80R16
TIRE LOAD RANGE: 10 P.R.
TIRE LOAD RATING: 3520 LBS
FENDER: FIXED
AXLE: ROTATING
SUSPENSION: LEAF SPRING
BRAKES: ELECTRIC
COUPLER: 2 5/16 IN.
COUPLER POSITION: FIXED
JACK STYLE: SIDE CRANK
JACK RATING: 2,000 LBS
LIGHTING: LED
STAKE POCKET: EIGHT
D-RING TIE-DOWNS: FOUR
Specifications

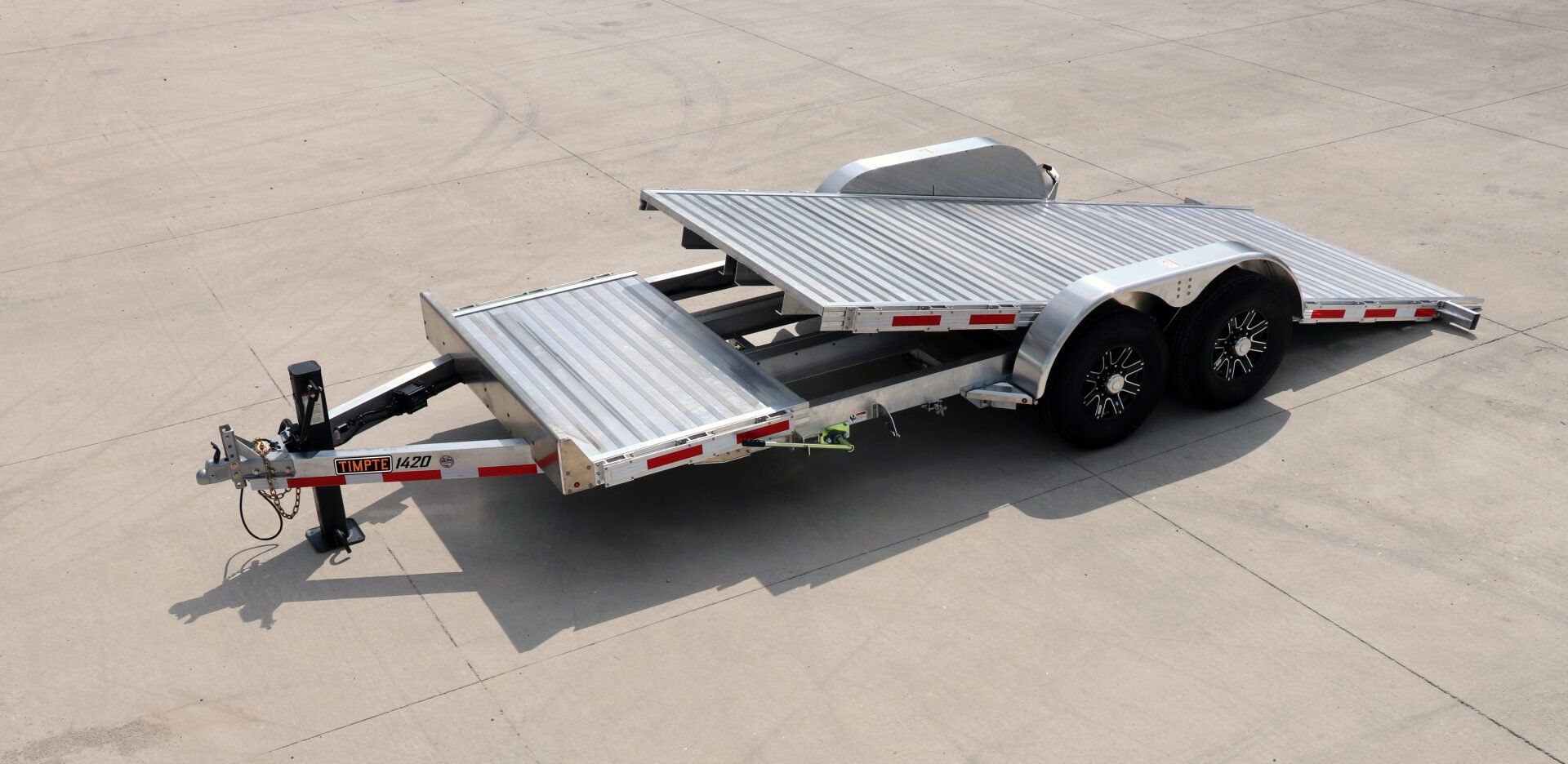

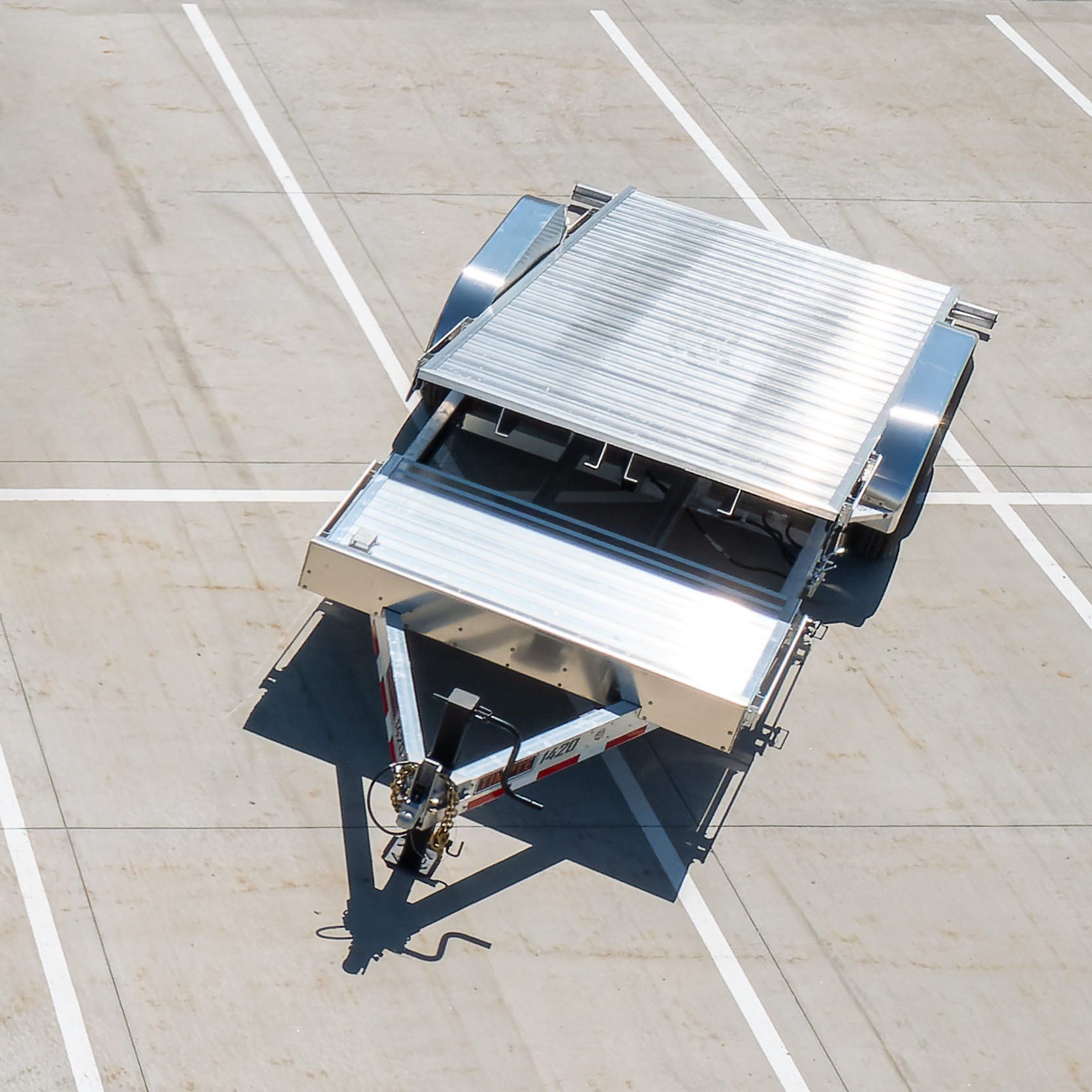

MODEL TYPE: 1420
GVW: 14000
EMPTY WEIGHT: 2620 LBS
OVERALL WIDTH: 102 IN.
OVERALL LENGTH: 24 FT. 6 IN.
BED SIZE: 20 FT x 84 IN
STATIONARY DECK LENGTH: 4 FT
TILT DECK LENGTH: 16 FT
TONGUE LENGTH: 56 IN.
DECK HEIGHT: 22 IN.
GROUND CLEARANCE: 11 IN.
LOADING ANGLE: 12°
DECK/FRAME MATERIAL: ALUMINUM
FRAME CONSTRUCTION: A-FRAME
C-CHANNEL SIZE: 10 IN.
WHEEL SIZE: 16 IN.
WHEEL BOLT PATTERN: 8 – 6.5
TIRE SIZE: ST235/85R16
TIRE LOAD RANGE: E
TIRE LOAD RATING: 3640 LBS
FENDER: SERVICEABLE
AXLE: FIXED
SUSPENSION: RUBBER TORSION
BRAKES: ELECTRIC
COUPLER: 2 5/16 IN.
COUPLER POSITION: ADJUSTABLE
JACK STYLE: SIDE CRANK
JACK RATING: 12,000 LBS
LIGHTING: LED
STAKE POCKET: EIGHTEEN
Specifications
MODEL TYPE: 1424
GVW: 14000
EMPTY WEIGHT: 2990 LBS
OVERALL WIDTH: 102 IN.
OVERALL LENGTH: 24 FT. 6 IN.
BED SIZE: 24 FT x 84 IN
STATIONARY DECK LENGTH: 6 FT
TILT DECK LENGTH: 18 FT
TONGUE LENGTH: 56 IN.
DECK HEIGHT: 22 IN.
GROUND CLEARANCE: 11 IN.
LOADING ANGLE: 12°
DECK/FRAME MATERIAL: ALUMINUM
FRAME CONSTRUCTION: A-FRAME
C-CHANNEL SIZE: 10 IN.
WHEEL SIZE: 16 IN.
WHEEL BOLT PATTERN: 8 – 6.5
TIRE SIZE: ST235/85R16
TIRE LOAD RANGE: E
TIRE LOAD RATING: 3640 LBS
FENDER: SERVICEABLE
AXLE: FIXED
SUSPENSION: RUBBER TORSION
BRAKES: ELECTRIC
COUPLER: 2 5/16 IN.
COUPLER POSITION: ADJUSTABLE
JACK STYLE: SIDE CRANK
JACK RATING: 12,000 LBS
LIGHTING: LED
STAKE POCKET: EIGHTEEN
Trailer Features
ALL ALUMINUM CONSTRUCTION
Aluminum has many advantages over steel as a trailer manufacturing material. Its vastly superior corrosion resistance will ensure your trailer has lower maintenance costs, longer life, and higher resale value. Its lighter weight means it is easier to pull and improves tow vehicle gas mileage. Timpte’s proven, state-of-the-art manufacturing techniques ensure that your new aluminum trailer will provide higher quality and overall durability compared to their steel counterparts.

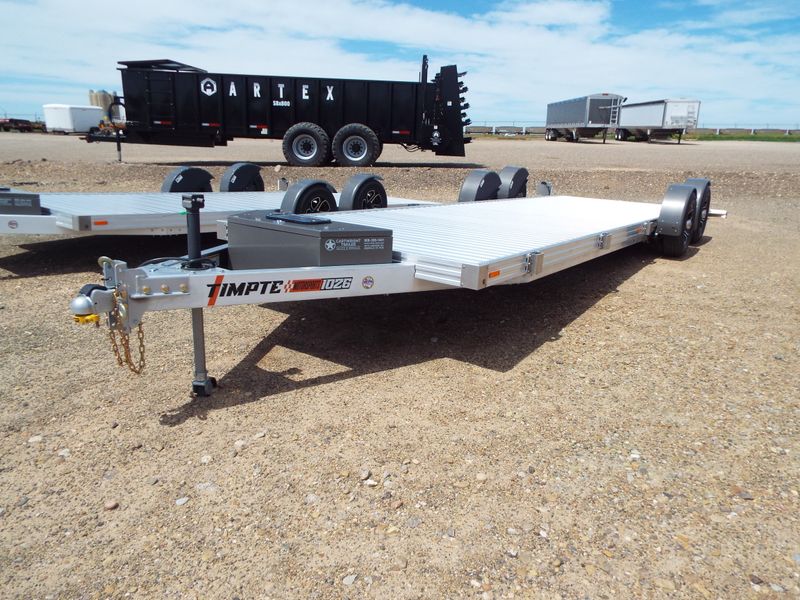

EZ-LOAD POWERED DECK SYSTEM
Timpte’s unique suspension system, available on select models, enables the user to raise and lower the equipment trailer by using a remote transmitter or switch located at the toolbox storage system. The patent pending design provides a 4-degree approach angle, enabling easy loading of equipment with minimal ground clearance; such as scissor lifts, sports cars, motorcycles, and so much more. No need to store or install separate loading ramps as the deck becomes your ramp. Battery power enables the user to operate the loading deck without being connected to the tow vehicle and an optional solar panel will charge the battery when power is not available through the RV plug.
SPACE SAVING DESIGN
Additional benefits of the EZ-Load powered deck system includes the ability to use it to store your equipment. Simply place the EZ-Load deck in its fully lowered position and park your equipment on it.
THEFT PREVENTION
Securing your investment has never been easier. You no longer require chains and padlocks to protect your trailer when not in use. Placing the EZ-Load deck in its fully lowered position, removing the master switch, and locking the toolbox ensures it will remain exactly where your left it.
